EDQ155

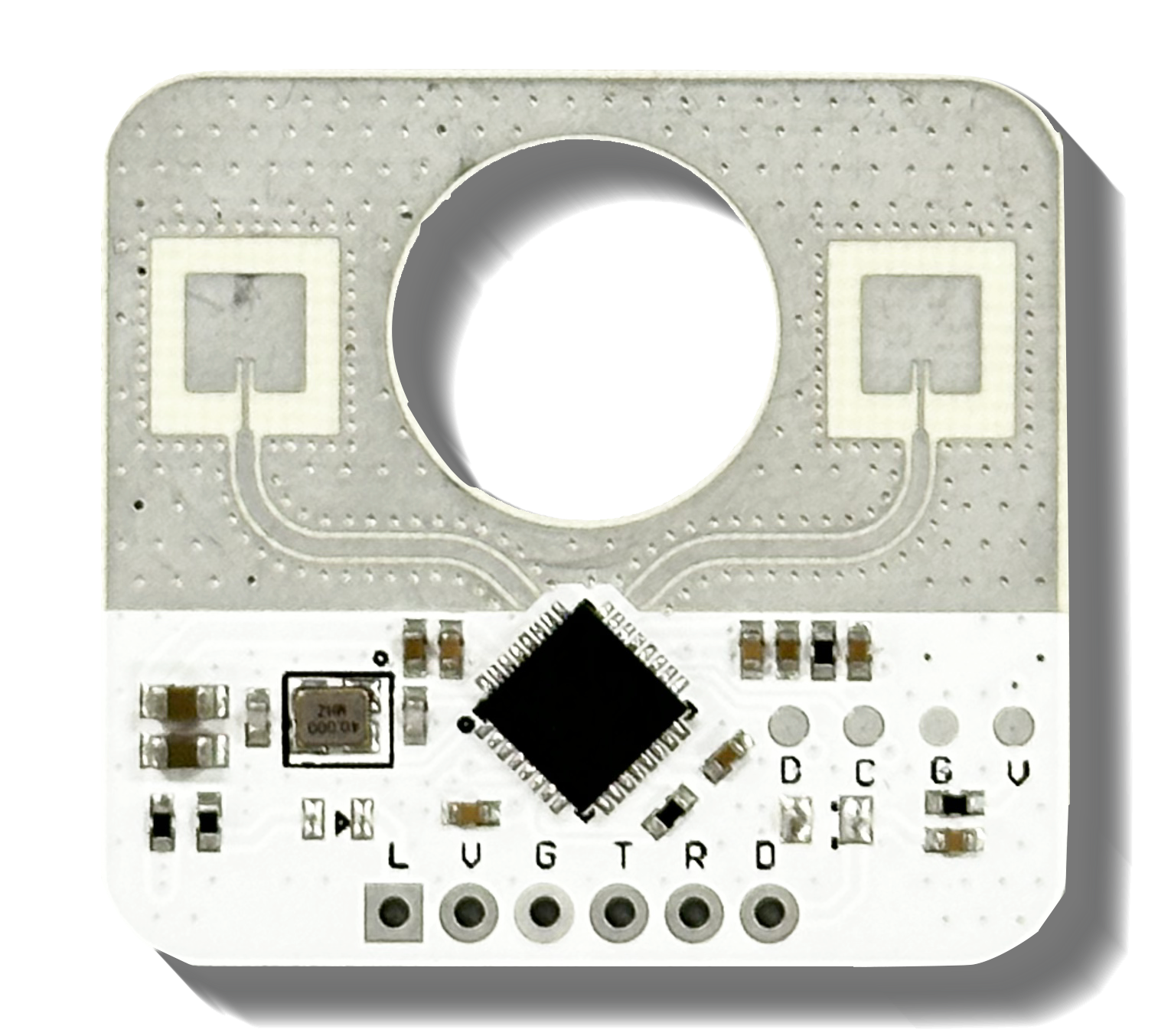

PIR-compatible dual-logging PCB design detects small human movements

presence sensing
low power

Product Introduction

EDQ155 adopts the PCB design compatible with PIR dual-logging, which is capable of detecting tiny movements of the human body, supporting low-power and ultra-low-power mode switching, and supporting adjustable sensing distance serial port!

Specification

Frequency band

24.125GHz
Supply voltage

3.3V
Output voltage

3.3V
Operating current

115±101uA (low power consumption) 30±5uA (ultra-low power consumption)
Sensing range

6m Max
Hanging height (side mounted)

conventional 1.2m
Delay time

2-65535s
Product size

26*24mm

Application Scenarios

alarm clock

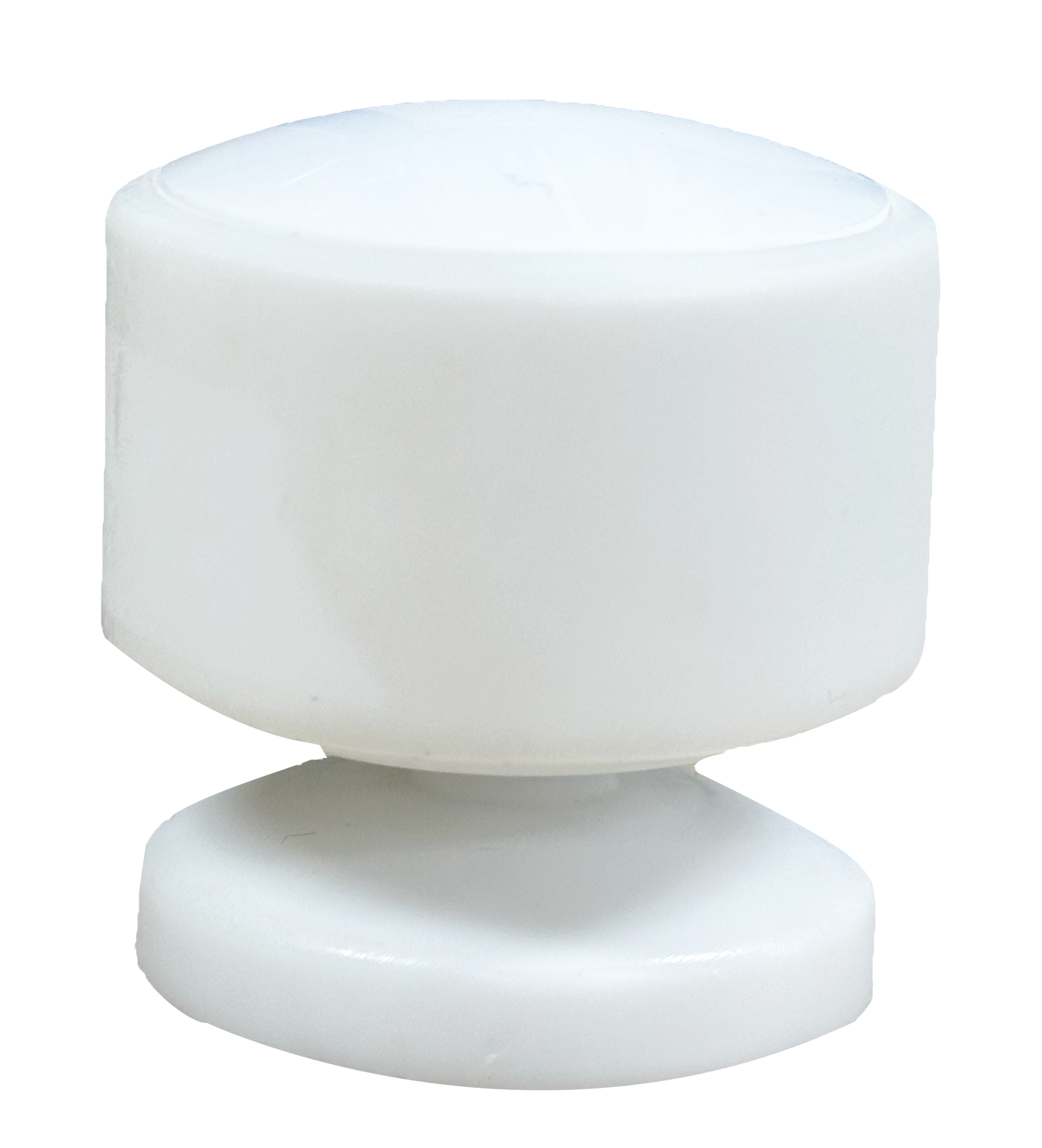

PIR Dual Identification Sensor

night light
