EDC808

Home Product Center Networking Series

EDC808

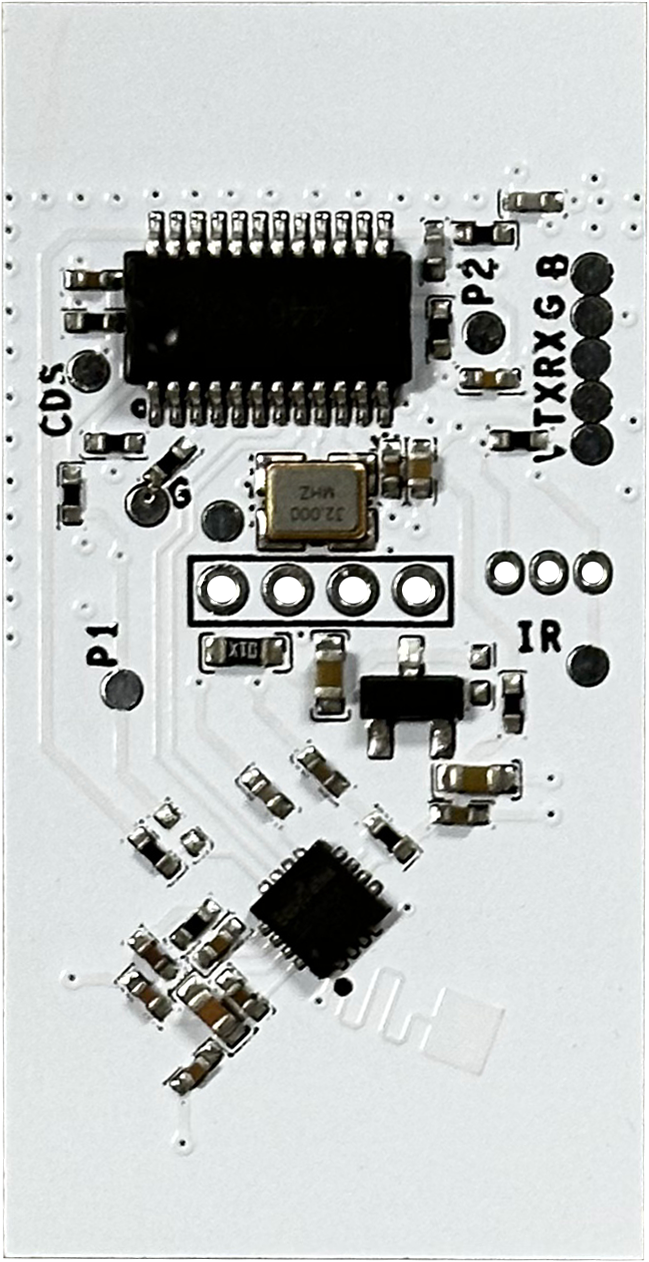

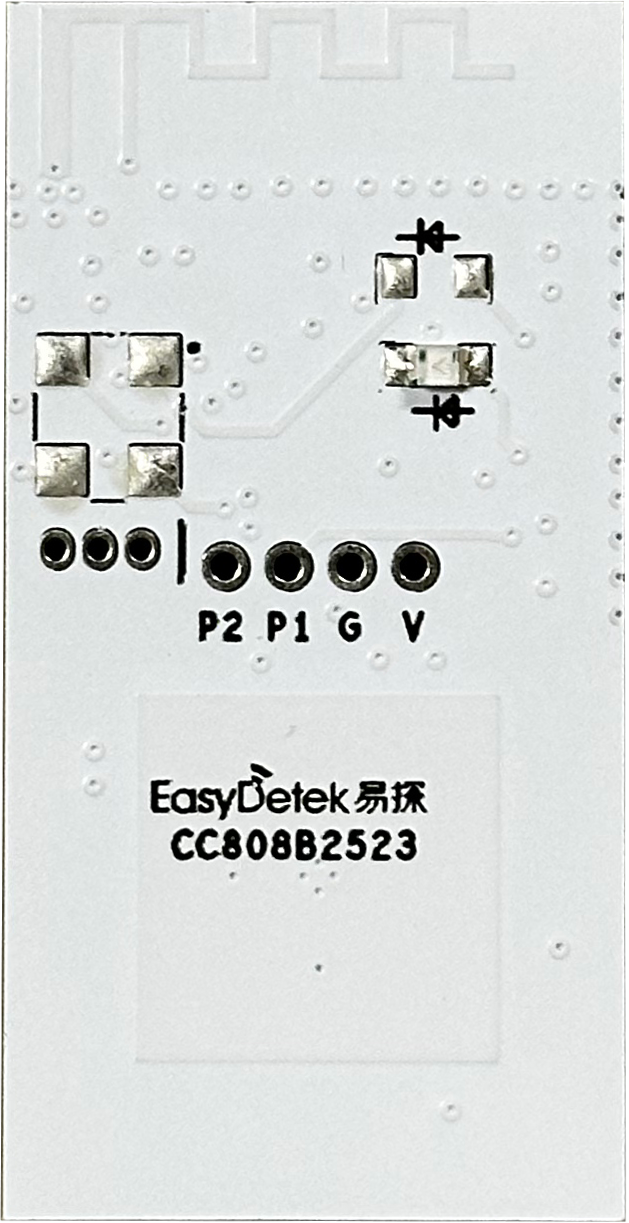

Easydetek Technology's Self-Organizing, Self-Learning Radar Module

underground garage application
high anti-interference
powerful performance

Product Introduction

The entire series adopts 5.8GHz radar chips and compliant frequencies, which comply with radio management regulations! And the consistency of detection distance is better! Can be equipped with infrared remote control for group sensing, supports adjustable delay time, supports manual/zero configuration networking, and can be used immediately upon power on. Remote OTA upgrade can be achieved through Bluetooth/4G gateway, making energy-saving data visualized and online!

Specification

Supply Voltage

5~12V
Operating current

23±2mA
Operating frequency band

5.8GHz±75MHz
Hanging height

3m
Sensing Radius Distance

1~5m(adjustable)
Communication range

Single jump ≤30m in open areas, supports multiple jumps
Size

39 * 20mm

Application Scenarios

Smart Appliance

Smart Business

Smart Lighting
